PRODUCTS FOR HEAVY GRINDING

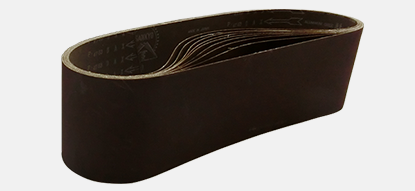

D SERIES

This is the most standard and comparatively inexpensive product for metal polishing.This product can apply to a wide range of purposes, not only for processing with belts, but also for processing with flap discs.

Application Grinding and polishing of metals on which stainless steel is easily welded

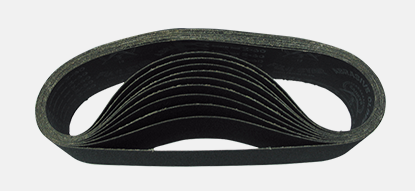

ZIR SERIES

Use of high-quality zirconia abrasive achieves a sharp performance.In order to hance further abrasive performance, extremely hard backing is used.This works quite well on the dry type of heavy metal working especially for metals on which stainless steel is easily welded.

Application Grinding and polishing of general metals

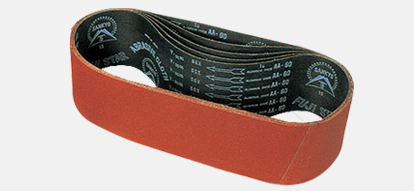

CETS-OUT SERIES

This abrasive belt uses ceramic abrasive. With its sharp shape, its sharp performance is not lost even when used for light grinding work.The abrasive used for this belt has a superfine crystal structure which brings about the spontaneous blade action. This can prevent the cutting edge from wearing, while continuously maintaining the abrasive performance.This product is applicable especially for difficult-to-machine metals, such as titanium alloy.

Application Grinding and polishing of difficult-to-machine metals

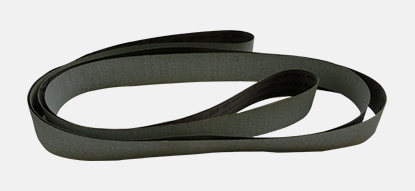

FEATURES OF ALUMINUM-SPECIALIZED PRODUCTS

We developed abrasives for aluminum materials which are soft and can be easily damaged with deep scratches, and easily welded by abrasives. These products are coated with anti-welding agents, so that scratches due to the attached aluminum can be reduced.

Application Grinding and polishing of soft materials such as aluminum that are easily welded

Kind：Specifications			Particle size
Kind	Minerals	Backing	24	30	36	40	50	60	80	100	120	150	180	220	240	280	320	400	500	600	800
DAX	AA	Xw	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯	◯
TZX-M	ZA	Xw	◯		◯	◯	◯	◯	◯	◯	◯
SGX	SG	Xw			◯	◯		◯	◯	◯	◯
TAJ-MS	AA	Jw							◯	◯	◯	◯	◯		◯		◯	◯		◯
